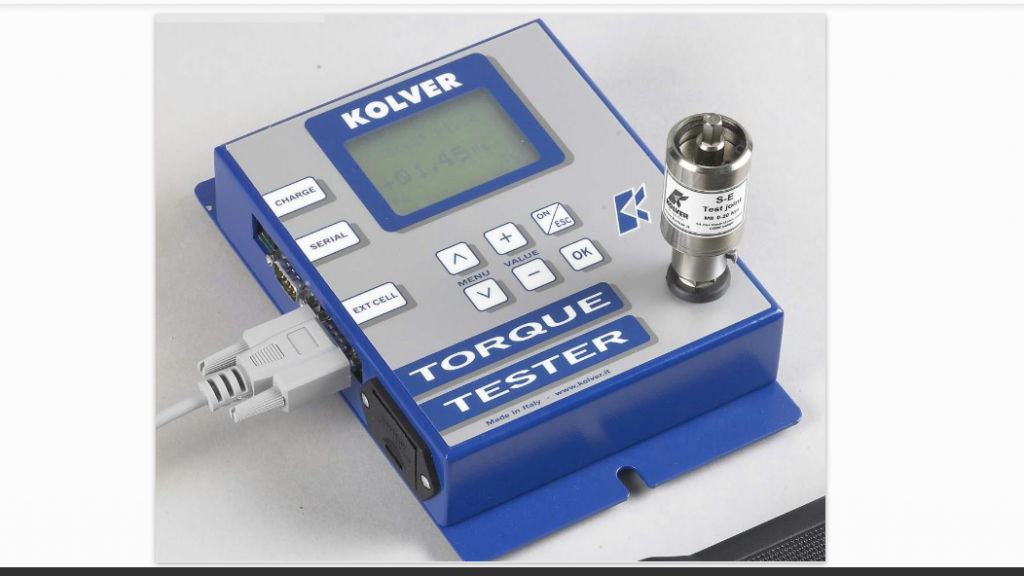

Torque Testers – K Series

The K series is a totally new class of torque analyzers. They feature a built-in transducer and also have the unique ability to connect to an external transducer.
Using a high performance circuitry they collect, store and eventually download torque measures for a complete analysis of the tool and/or the joint. Priced at an outstanding low level, this tester will surely become very popular for any company wishing to improve their product quality through the precise control of torque.

– User friendly menu
– Membrane keyboard
– Accuracy: +/- 0,5% of the displayed value +/-1 digit.
– Internal transducer for tests on a joint simulator (supplied with the unit).
– Connection for external transducer (transducer not included).
– 500 readings memory.
– Selection among Nm, Ncm, kg/cm, in/lbs.
– RS232C output (cable not included).
– Indication <=> of the preset values.
– Output signal at preset reached value.
– Clockwise and counter-clockwise measurement.
– 3 modes of operation: Peak + , Peak -, Track.
– Manual or automatic reset. – 9 V rechargeable battery provide 4 hours continuous operation. Automatic switch off to reduce battery consumption.
– 125% transducer overload protection.
– English and Italian menu.
