EDU2AETOP
EDU2AE/TOP.

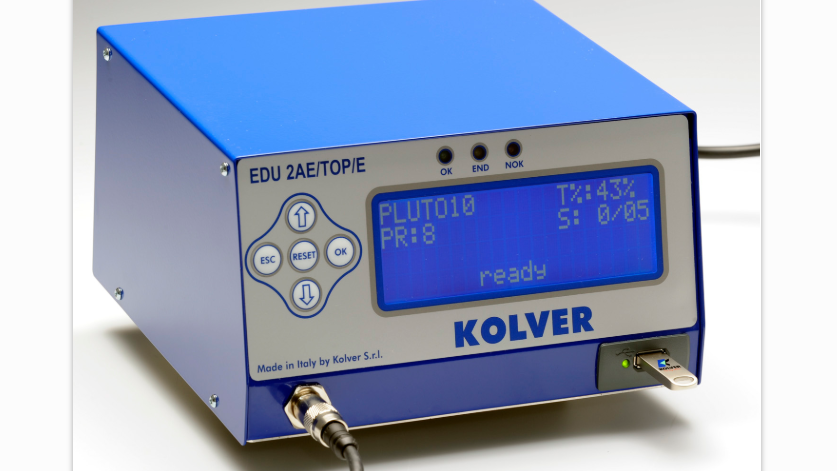

The multiple torque system is designed to expand the functionality of the PLUTO screwdriver by enabling easy access to multiple torque settings with one controller and one Pluto driver only. Models include a double torque output unit and a multiple torque unit EDU2AE/TOP. It features up to 8 programs, each one with different torque values, speed, ramp, screw counting, batch counting, USB port for printer and PC connection, torque chart witThe new EDU2AE/TOP control unit features:
• screwdriver model setting
• tightening torque, fastening and unscrewing speed
• acceleration ramp
• min and max fastening time
• autoreverse
• password protect settings
• prevailing torque function (for an adjustable time)
• clockwise or counterclockwise rotation (right or left screws) with torque control
• torque value in Nm on the display through dedicated calibration menu
• screw count function
• min-max torque interval with OK or NOK signal
• 8 independent programs: with one PLUTO screwdriver you can replace 8 conventional screwdrivers.
• Time and date
• Program selection by barcode
• Program selection by socket tray and/or switchbox
• Also available in TA version with torque/angle combined control functions (see dedicated page)h real time clock.
